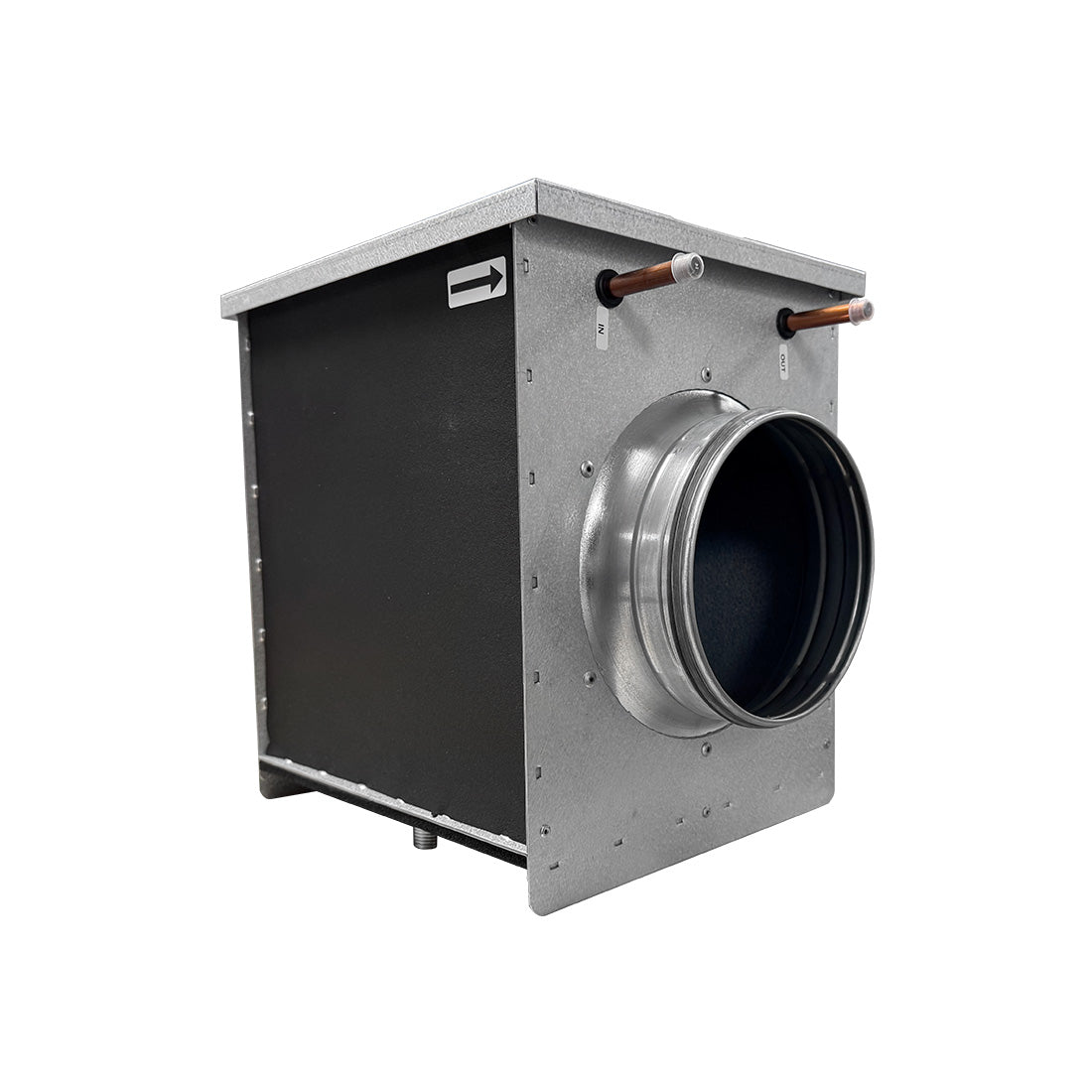

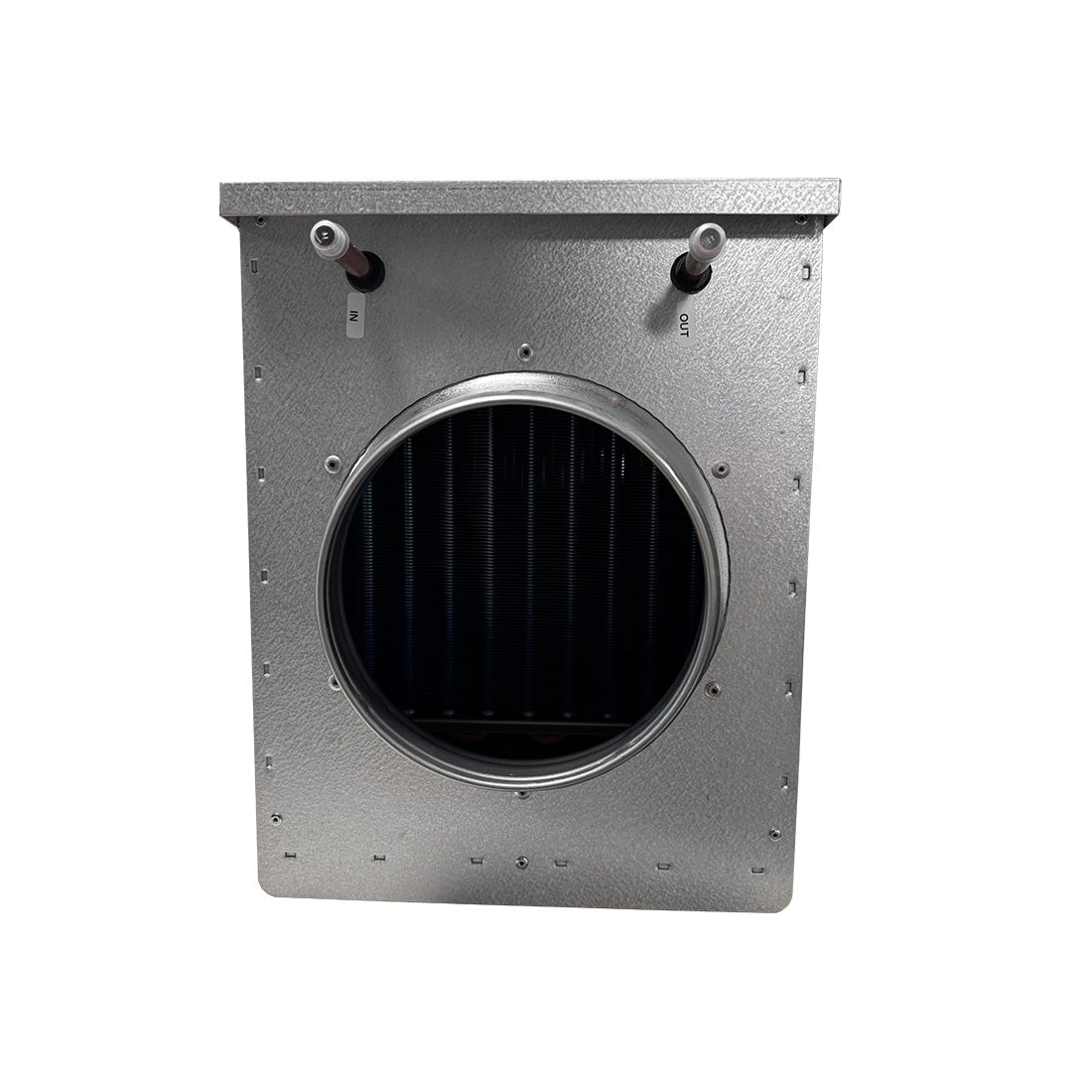

Duct Mounted Cold Water Cooler Range
Main Features:
- Uses cold water supplied from your exiting heat pump
- Used for cooling the ventilation air in a ventilation system
- Can also be used for cooling individual rooms or zones
Technical Features:
- Can be installed both horizontally and vertically
- Circular duct connection with rubber seal
- Casing of Aluzinc-coated sheet steel, AZ 185
- Openable cover for inspection and cleaning
- Cold water coil with 2 or 3 tube rows

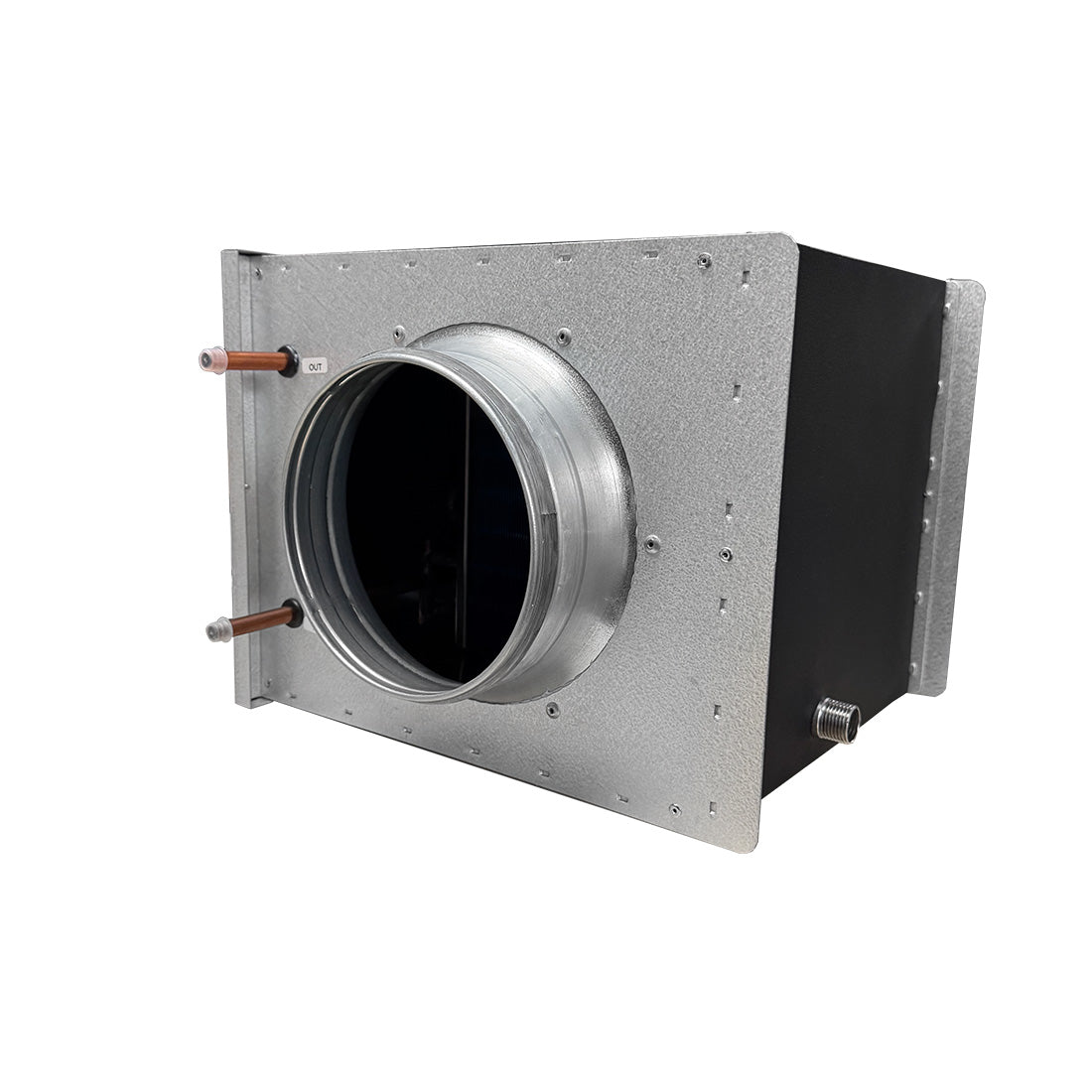

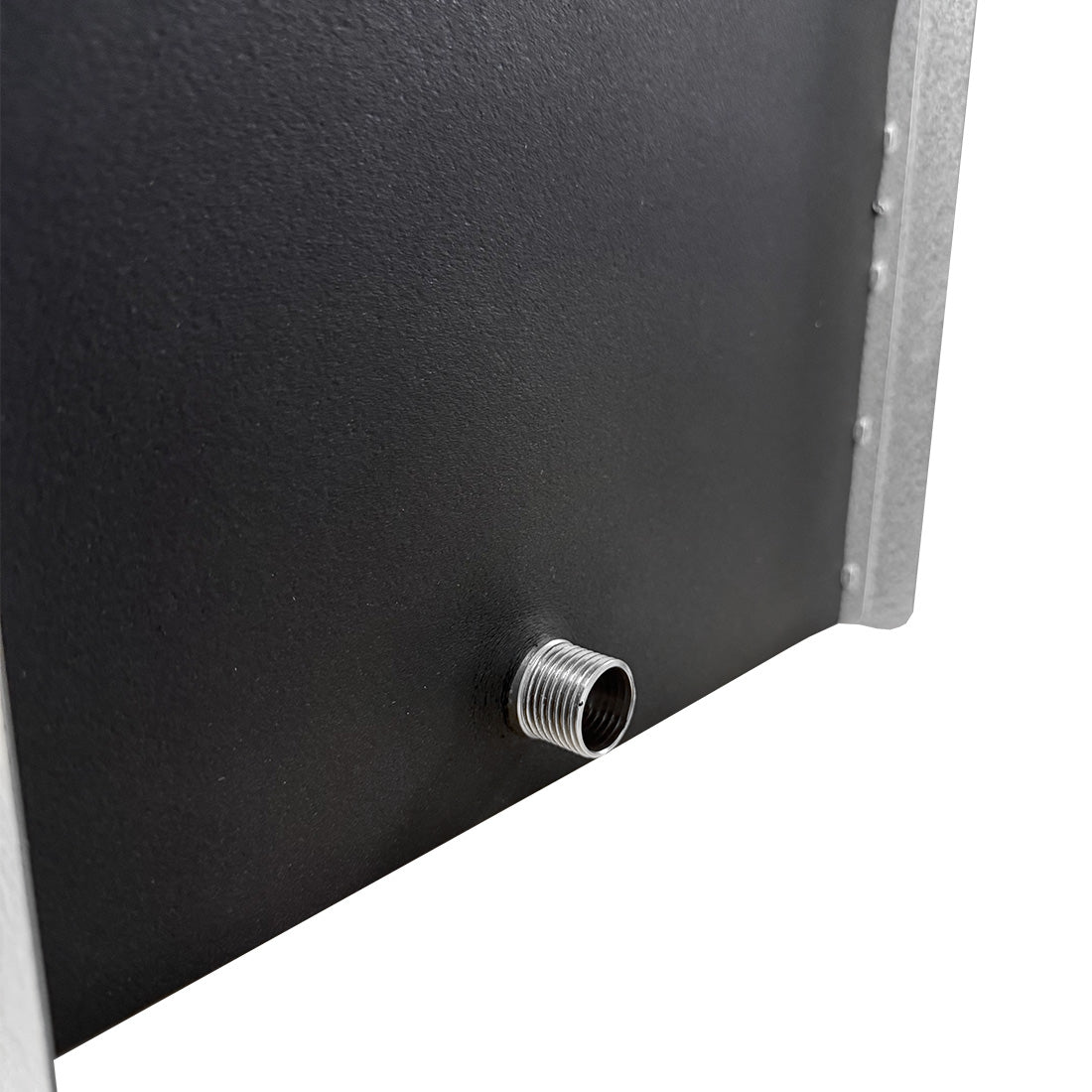

- Condensation drain
- Air tightness class C to EN 15727
- operating pressure: 1,0 MPa (10 bar)
- For controlling the room or supply air temperature, the duct heater can be supplemented with regulators, sensors, actuators, valves, and anti-freeze protection.at an additional cost
Model | Weight (kg) | Length (mm) | Width (mm) | Depth (mm) |
125mm - 3 Row Duct Cooler | 7 | 400 | 270 | 330 |
160mm - 3 Row Duct Cooler | 8 | 400 | 270 | 330 |
200mm - 3 Row Duct Cooler | 11 | 420 | 370 | 420 |
