Drayton Wiser Thermostat Kit 1

Overview

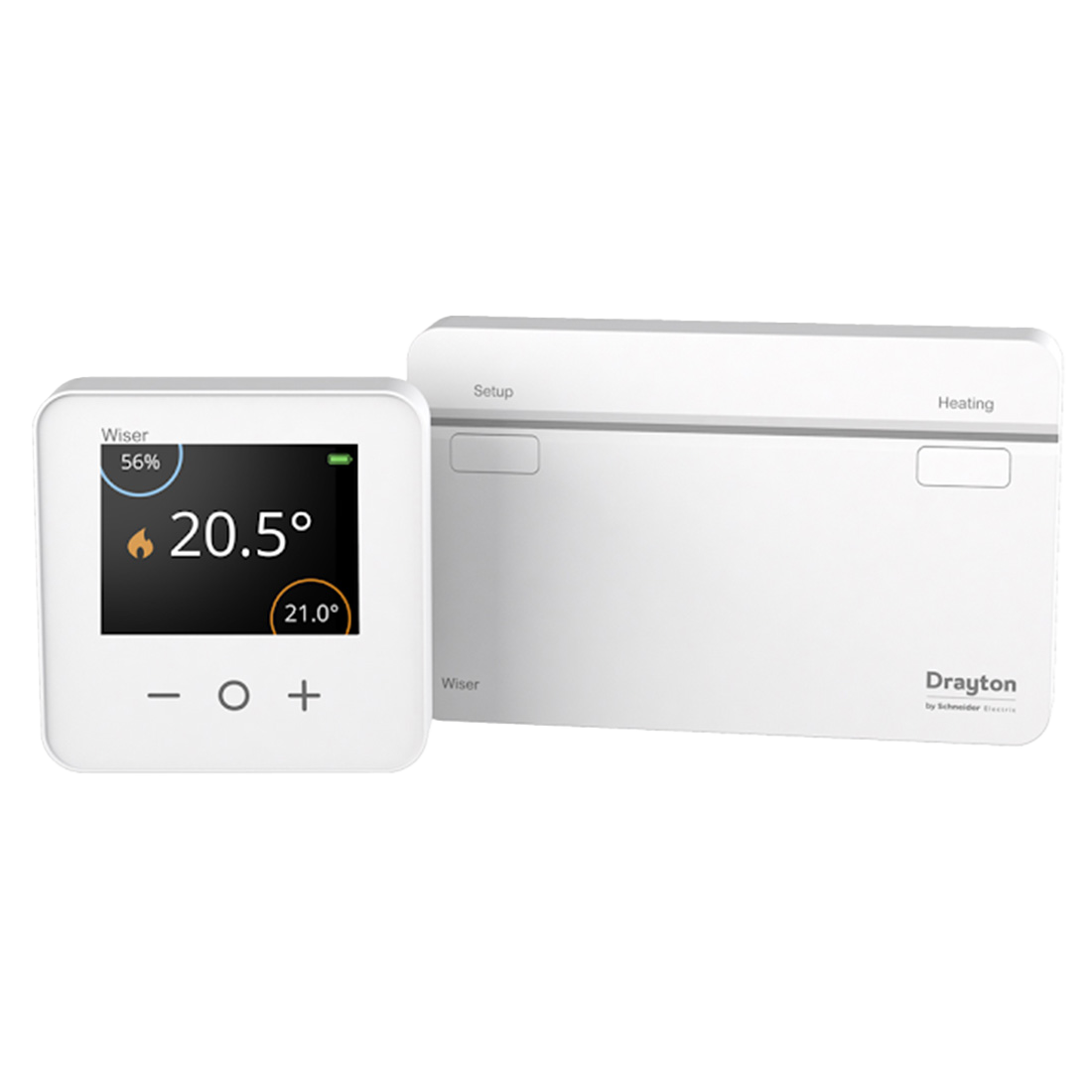

Drayton Wiser Thermostat Kit 1

  •   In Stock
Quantity:
Price
Show Excluding Vat
£249.34 £207.78
Need Help ? Get in touch

Further Information

Key Features

  • Multi-zoning - build the perfect system by adding radiator thermostats as required
  • Eco Mode - combines weather compensation & optimum stop for maximum savings
  • Flexibility - create up to 16 zones using up to 63 devices
  • Simplicity - standard wallplate & wireless devices
  • Remote Control - simple app with boost & away mode
  • OpenTherm® technology – digital boiler interface enabling more efficient control
  • Works with Amazon Alexa, the Google Assistant & IFTTT

Description

Drayton Wiser Thermostat Kit 1

Product Part Number

Wiser Thermostat Kit 1 - WT714R9K0902

Description

One channel thermostat system suitable for combination boilers.  Set schedules for the room thermostat and radiator thermostats via the Wiser Home app.  Add radiator thermostats to create more independent zones.



Documentation

Technical Specification

Specifications

ErP rating (On/Off boiler)

3.5%

Dimensions

HubR: 148mm(w) 93mm(h), 31mm(d); Room thermostat: 76mm(w), 76mm(h), 25mm(d)

Power supply

HubR: 230V a.c. ±10% 50Hz; Room thermostat: 2x1.5V IEC LR6 (AA) alkaline batteries

Switch rating

2(1)A 230V a.c. each switch

Wiring

HubR: Fixed wiring only, to comply with current IET regulations (BS7671); Room thermostat: No wiring required

Interfaces

HubR: User: Push Button/LED; I/O: Mains Relays (1-3), Digital Boiler Interface; Room thermostat: User: TFT display, touch buttons; I/O: None

Operating temperature

0°C to 45°C

Storage temperature

-10°C to 55°C

Ingress protection

HubR: IP30; Room thermostat: IP20

Ambient humidity (non-condensing)

Operating 25% to 90%, Storage 15% to 95%

Set-point range

5°C to 30°C

Control accuracy

<0.6°C at 4°C/hour (with room thermostat)

Timing resolution

1 minute

Temperature resolution

0.5°C

Ball pressure test

HubR: 92°C; Room thermostat: 75°C
Pollution degree 2
Software class A

Without mains power

Display: LEDs off; Time: always kept; Programme times: always preserved

Rated impulse voltage

2.5kV

Radio technology/frequency

2.4GHz (Bi-directional, Mesh)

Radio signal range

30m

Mounting

"HubR: Industry standard wall plat; Room thermostat: Wall bracket or desk stand"

Maximum radio frequency power transmitted

HubR: +17dBm (50mW); Room thermostat: +13dBm (20mW)

Software version

HubR: 6712093; Room thermostat: 6712090

Relevant directives

"Radio Equipment Directive (RED) 2014/53/EU, Batteries Directive 2006/66/EC, RoHS Directive 2011/65/E"

Applied standards

EN60730-1; EN60730-2-7; EN60730-2-9, EN 300 328

Sustainable offer status

Green Premium product
