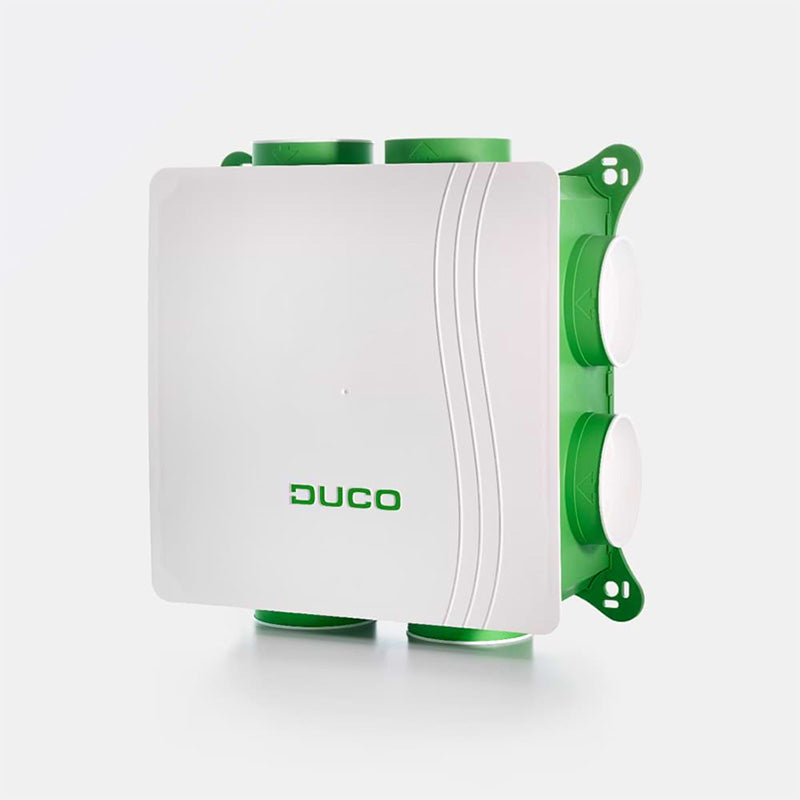

DucoBox Silent Basic MEV Unit
DucoBox Silent is the quietest MEV in Europe! This mechanical air extraction unit works by extracting contaminated and moisture laden air from wet rooms in your home. It allows a heathy and comfortable indoor climate
This unit is the basic 3 speed control model, sensors and optional control are not available
Manufactured in accordance with system C, meaning that it has low maintenance and no major maintenance expense
Key Features

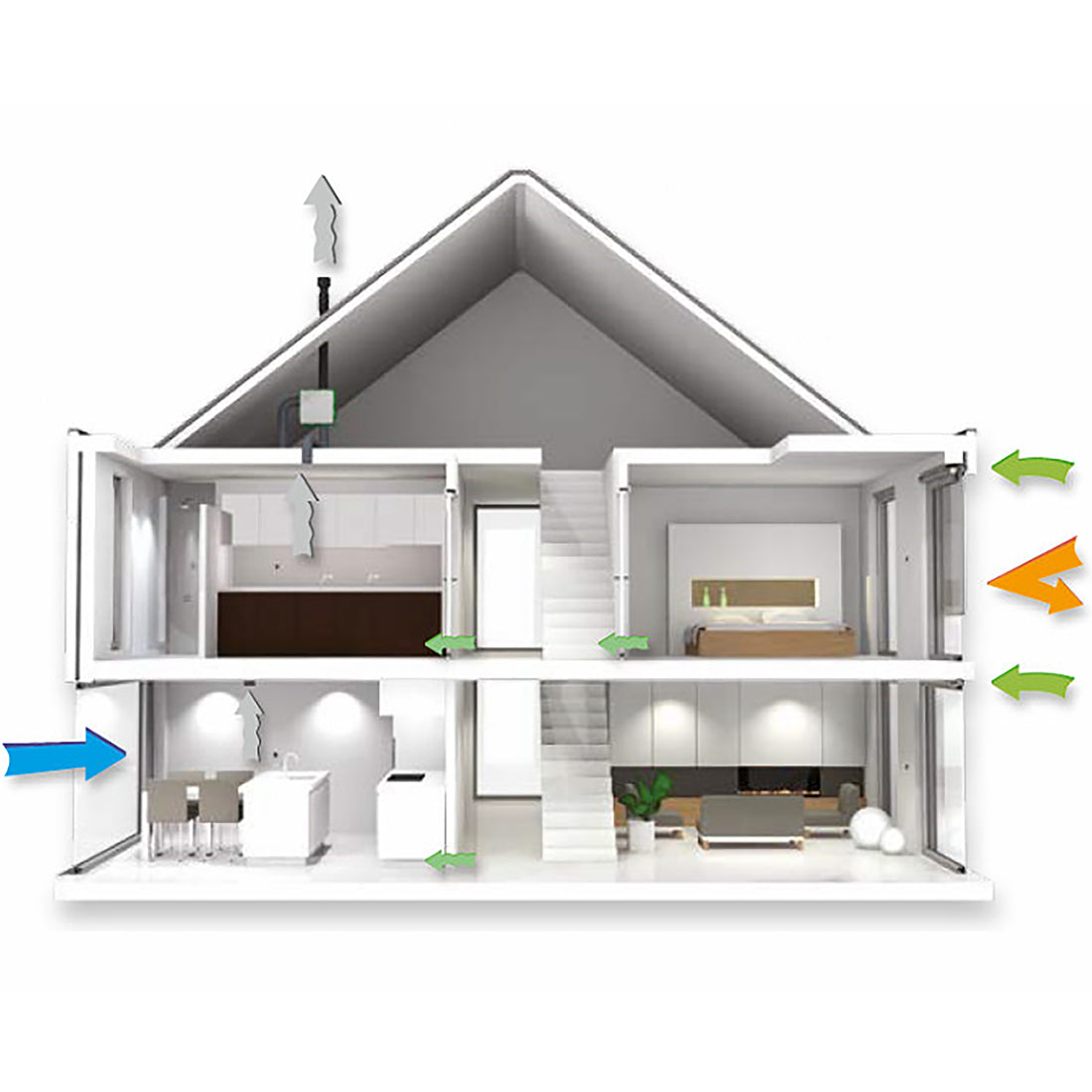

- Forced extraction of contaminated and moist air in wet rooms
- Manufactured to system C
- Powerful Extraction
- Wireless Communication
- Whisper quiet noise level
- Double wall construction and acoustic base plate
- The unit is constructed of polypropylene featuring a double wall and an acoustic base plate, making it the quietest MEV system.
Technical Features
- Maximum flow rate – 400m3/h
- 7 x 125mm connections
- Smart and Energy Efficient
- BRE approved
- 57.5 dB(A) minimum noise level
- Dimensions - W x H x D – 480mm x 480mm x 194mm
- Fitted with a direct current, thermally protected electric motor with supply voltage of 230.
- Installation: Suitable for wall mounting.
- Suitable for wall mounting.
- To install Outlet side: fit non-flexible to the outlet side, fixed duct leading to the outside, the route of which should be as straight and direct as possible.
- Use at least 2 extraction points on the central extract unit, one for ventilating the kitchen and one for ventilating other rooms, the unit has up to 7 inlet point
Controllability
Wireless communication via RF protocol with other control components within the Duco network.
The unit is controlled wirelessly and can be connected via the Duco smartphone application. You can choose to add CO2 or humidity box sensors.
Duco ventilation app allows:
- Efficient parameter readout
- Rapid setting changes
- Live air quality measurement
- Time saving and user-friendly controlBenefits of working with BPC Ventilation
- Number 1 leading MVHR and ventilation system specialists
- Large range of systems for domestic and commercial applications
- Authorised Duco distributors
- In-house design service
- Full technical support
- 1000s of products in stock in our own warehouse
- Large showroom with working units on display
- Installer network throughout the UK and Ireland
- All systems comply to all the latest building control regulations
- Technical Specification
-

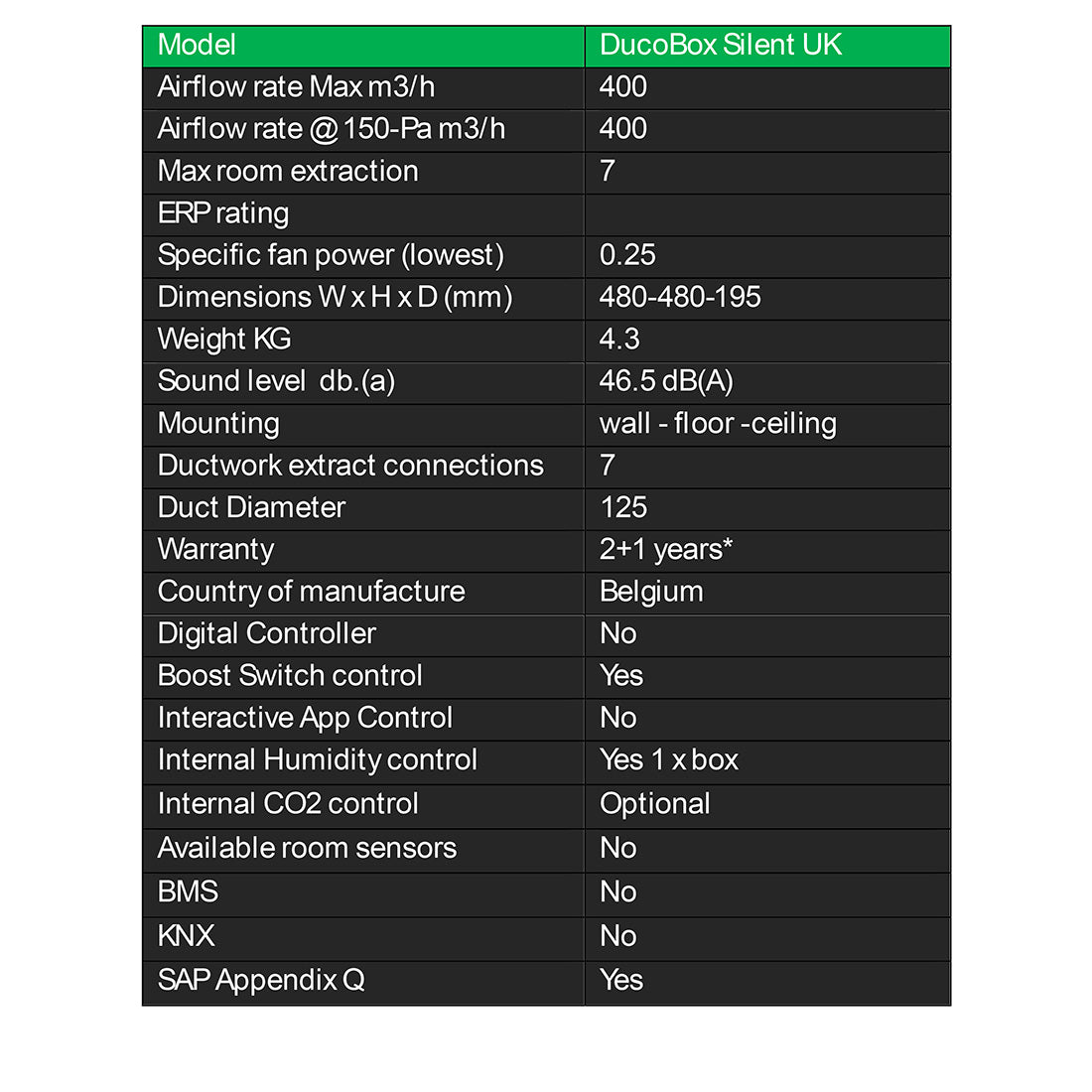

Technical Specification
Technical Specification
Model
DucoBox Silent
Connections to rooms
7 x 125mm
Connections to outside
1 x 125mm
Maximum Flow rate (m3/h)
400
Flow rate @ 100 Pa (m3/h)
350
Pressure (Pa)
150
Dimensions (W x H x D)
480 x 480 x 194mm
Weight
4.3 kg
Low Duct Resistance Technical Characteristics
Flow (m3/h)
Pressure (Pa)
Absorbed power (W)
Maximum Power (W)
Intake - dB(A)
From DucoBox Housing- dB(A)
100
70
10
11
39
35
100
100
13
13
43
36
150
100
15
16
44.5
37
250
100
27
29
50
43.5
300
100
42
44
53.5
44
350
100
57
59
57.5
46.5
High Duct Resistance Technical Characteristics
Flow (m3/h)
Pressure (Pa)
Absorbed power (W)
Maximum Power (W)
Intake - dB(A)
From DucoBox housing - dB(A)
150
150
20
22
47.5
39.5
225
150
32
43
50
41.5
250
150
34
48
53
43
300
150
48
63
54.5
46.5
325
150
58
72
55.5
48
350
150
60
76
57.5
49
400
150
81
84
60
52
