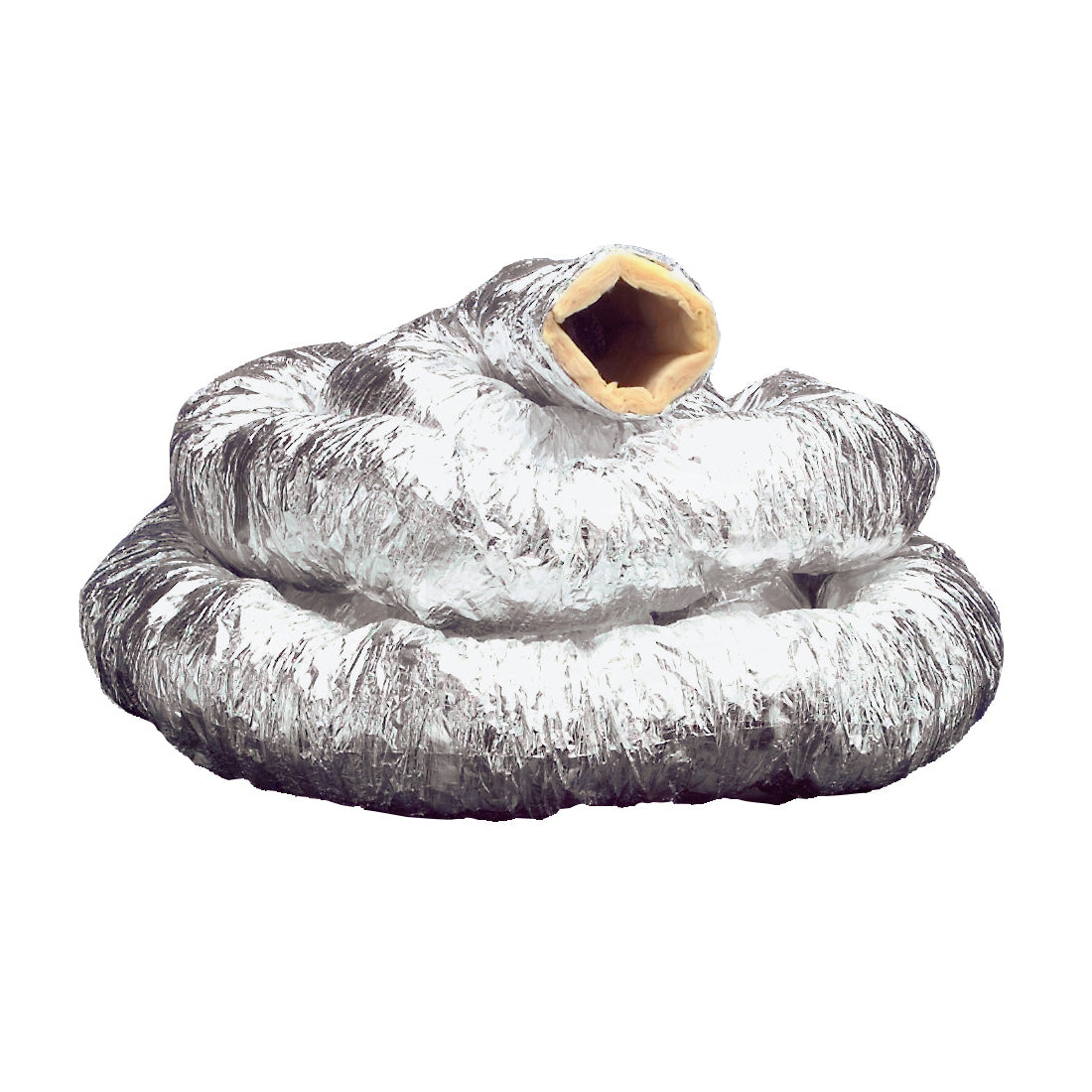

Insulated Flex Ducting x 10 meter
- 100mm Insulated flex duct - IFD100-10
- 127mm Insulated flex duct - IFD125-10
- 150mm Insulated flex duct - IFD150-10
- 180mm Insulated flex duct - IFD180-10
- 200mm Insulated flexi duct - IFD200-10

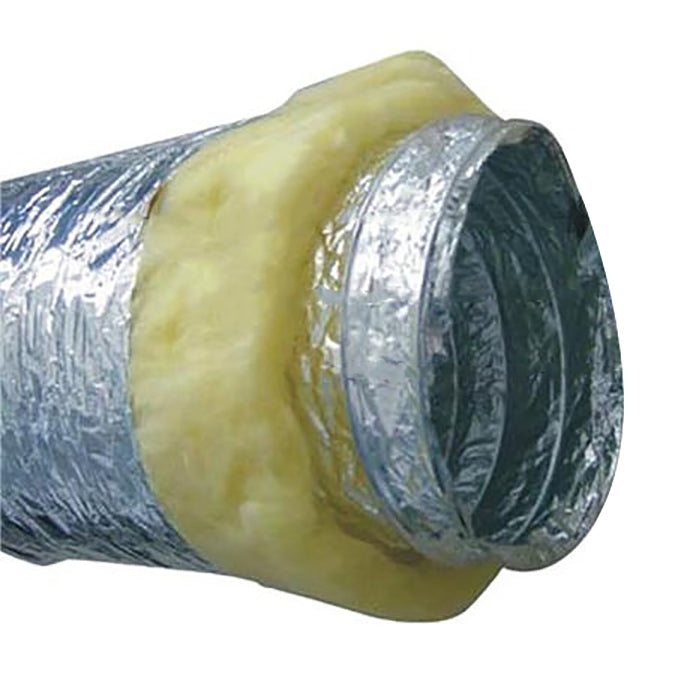

- Flexible Aluminium inner core with silver foil faced 25mm glass wool insulation
- The insulation reduces the heat gain or loss resulting from temperature different between the air flowing in a duct and the surrounding air
- 10 Meter long - compressed in box 1.2m long for transport
- 25mm insulation minimises condensation in cold attic spaces
- Can also be used for final connections or roof vents on heat recovery systems
- The outer jacket acts as vapour barrier to prevent condensation from entering into the insulation
- 10 metre Insulated Round Hose, Aluminium insulated ducting hose in silver
- Suitable for both domestic and commercial use
- Insulated and fire retardant
- Complainant with Part F of the Building regulations
- Temperature range -30 to +140 degree
- Very small storage and transport volume
- Manufactured to BS476 Parts 6 & 7 Class 0
Fully extend ducting, then cut to exact length required using a sharp knife and pliers. We recommend that joints be sealed on medium and high pressure applications using Duct Sealant or Aluminium Duct Sealing Tape. Securely clamp the inner core first and then tape or clamp the outer jacket and inner core to the spigot. Taping the outer jacket to the spigot will prevent any fibre migration
This product is compatible with most manufactures including
102mm 127mm 152 182 202 Verplas INS100X10 INS127X10 INS152X10 - NS203X10 Manrose INSDUCT102 - INSDUCT152 - - Nuaire FLDI100 FLDI125 FLDI150 - -
Insulated Flexible Duct x 10 Meter comes in the following sizes
- 102mm - for 100m duct systems
- 127mm - for 125m duct systems
- 152mm - for 150m duct systems
- 182mm - for 180m duct systems
- 202mm - for 200m duct systems
BENEFITS OF WORKING WITH BPC VENTILATION
- In-House design service
- In-House Technical support
- Specialists in easy to install DIY systems
- 1000s of products in stock in our own warehouse
- Large showroom with working units on display
- Installer network throughout the UK and Ireland
- All systems comply to all the latest building control regulations
- 0% Finance available
- Technical Specification
Insulated Flexible Ducting x 10 Metre - Technical Specification
Round System (mm)
EAN - Barcode
