Quiet-Vent Semi Flexible Silencer Range

Overview

Quiet-Vent Semi Flexible Silencer Range

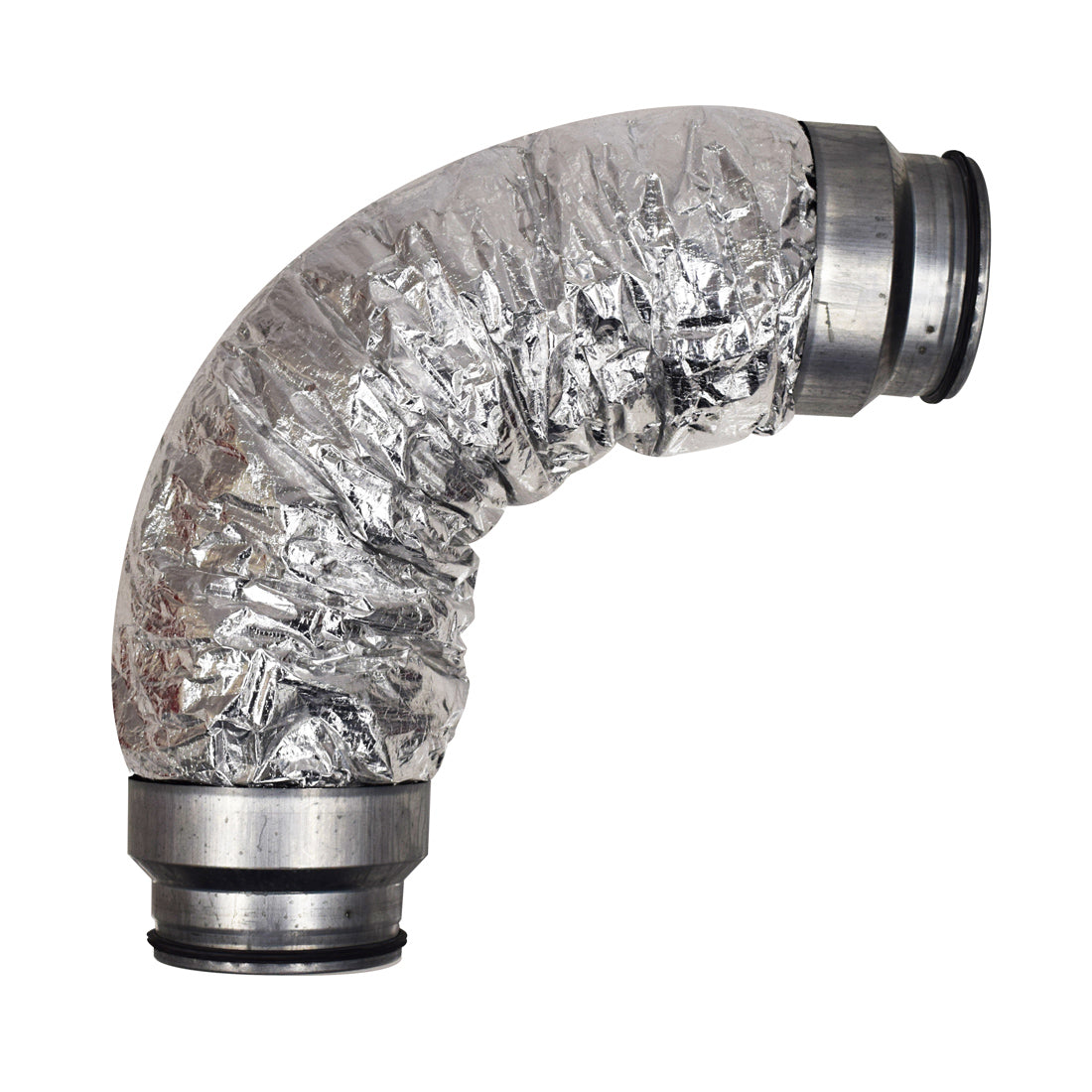

  • The construction of these units consists of a multi layered, corrugated, perforated aluminium inner duct and an aluminium / polyester outer jacket
  • Male galvanised steel connections fitted on each end, have a rubber double lip seal fitted, enabling easy leak free joints.
  • Due to its flexibility they are ideally used as a flexible connection between two miss aligning ducts
  • Can also be used to helping minimise transferred mechanical vibration / noise down ducting systems
  • Suitable for temperatures between -30ºC to +140ºC
  • can be combined immediately with our air valves
  • air supply systems
  • air conditioning systems
  • sound attenuator
  • the reduction of noise from machines
  • handy connector between ventilation units and air duct systems
Brand
  •   In Stock
Options
Quantity:
Price
Show Excluding Vat
£0.00 £0.00
Need Help ? Get in touch

Description

Quiet-Vent Semi Flexible Silencer Range

Product Part Number

125mm x 500mm Silencer - QV125F-SILENCER

150mm x 500mm Silencer - QV-150FF-SILENCER(DC)

160mm x 500mm Silencer - QV160F-SILENCER

180mm x 500mm Silencer - QV180F-SILENCER

200mm x 500mm Silencer - QV200F-SILENCER

250mm x 500mm Silencer - QV250F-SILENCER

Description

The Quiet-Vent sound attenuator is a strong, flexible and corrugated aluminium inner duct with a aluminium laminate outer jacket. The space between the inner and outer ducts is filled with 25 mm sound absorbing material. A non-woven barrier between the inner duct and the glass wool prevents the diffusion of glass wool particles.

The attenuator is by standard on both sides equipped with galvanized metal sleeves for direct mounting to the rigid duct work or equipment.

The semi flexible insulated sound attenuators can be used in conjunction with any ventilation system to help reduce noise ingression.

Important Features

  • Positioned between the two layers is a 25mm thick sound absorbing material
  • A membrane is fitted specifically to not let any condensation pass through the wall of the inner duct
  • This eliminates any condensation build up between the inner duct and outer jacket


Technical Specification

Dimensions Table

Product Part Number Spigot SizeØ
QV125F-SILENCER 125mm
QV150FF-SILENCER 150mm
QV160F-SILENCER 160mm
QV180F-SILENCER 180mm
QV200F-SILENCER 200mm
QV250F-SILENCER 250mm
