Rectangular Ducting Horizontal 90° Bend

Overview

Rectangular Ducting Horizontal 90° Bend

Brand
  •   In Stock
Options
Quantity:
Price
Show Excluding Vat
£0.00 £0.00
Need Help ? Get in touch

Further Information

KEY FEATURES:

  • UK Manufactured
  • Pipe ends are female sockets
  • Easy to install and durable, just push-fit duct and fittings together
  • Compatible with most other manufactures
  • Extensive range of fittings, outlets, and grilles available
  • Max / Min Temperature: +60c / -15c.
  • DW/154 and meets UL94HB Flammability standard
  • Suitable to use in compliance with Part F Building Regulations.
  • Sap Appendix Q Compliant
  • Airflow performance independently tested by BSRIA or BRE.

Description

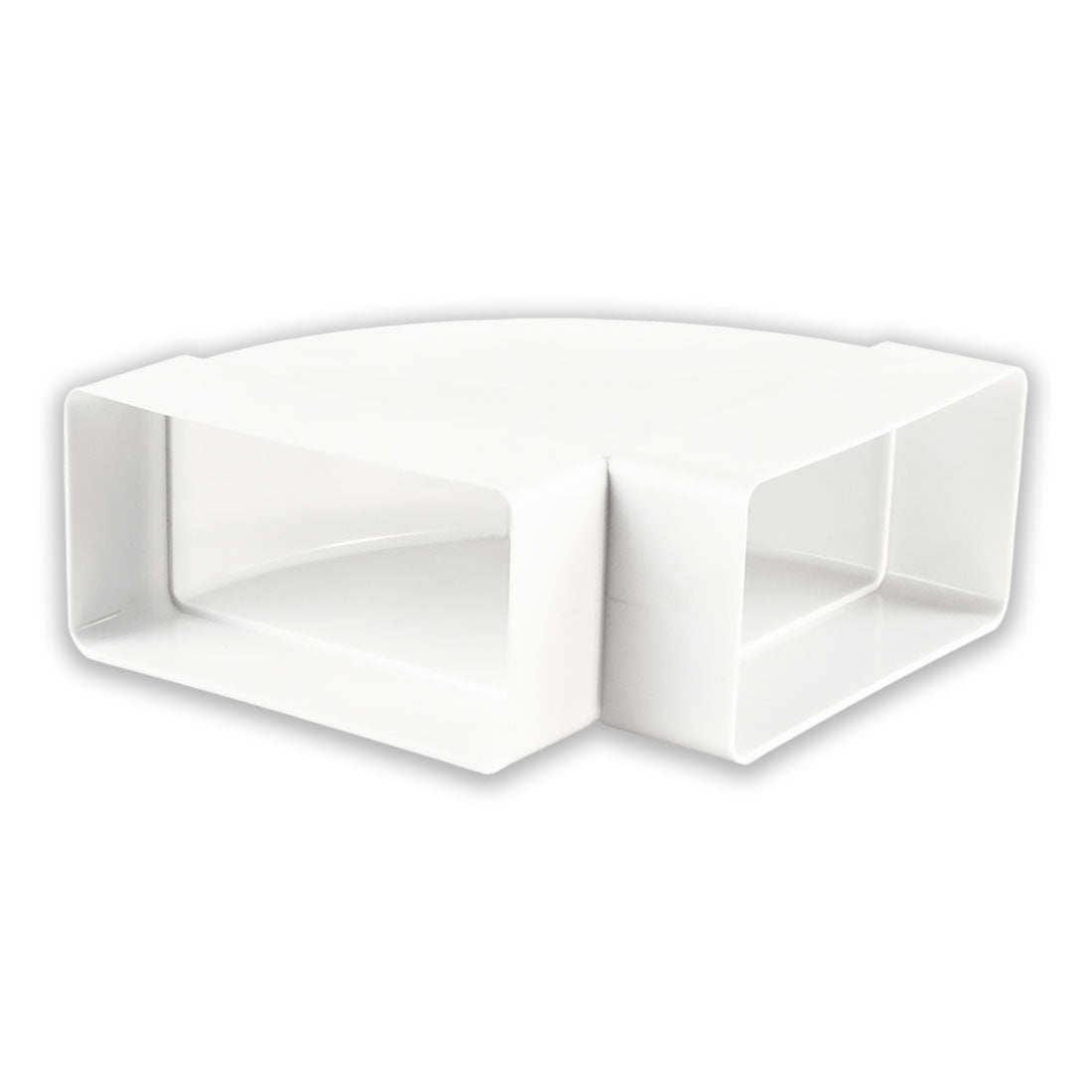

Rectangular Ducting Horizontal 90° Bend

Product Part Number

110x54 Horizontal 90 degree Bend - HB90110

204x60 Horizontal 90 degree Bend - HB204-90

220x90 Horizontal 90 degree Bend - HB220

Description

Our range of plastic ducting is UK manufactured with top quality materials that will supply a durable product suitable for domestic and commercial systems

This horizontal 90 degree bend can be used to run your ductwork around obstacles, along walls and into ceilings and offers superior performance and durability over flexible alternatives.

Designed to be low profile to fit inside ceilings, floor slabs, or to be concealed above kitchen wall units. It is best utilised as part of a ducting system for high powered cooker hood extractors and whole house ventilation systems, such as heat recovery systems or mechanical ventilation systems in offices, houses, and apartments.

Compatibility

Compatible with most manufactures including

  110X54 204X60 220X90
Verplas VKC238 VKC5605 VKC5705
Vent-Axia 436602 436620 403028
Manrose 1510 1550       -
Domus 40050 50550 950
Nuaire PVC050WH PVC550WH       -



Performance

Solid Rigid ducting is suitable for use in all buildings to provide superior airflow performance vs. comparative size rectangular or flexible PVC or Aluminium duct. Suitable to use in compliance with Part F Building Regulations.

Installation

To provide the best performance in airtightness and durability we recommend You provide greater mechanical strength to a joint by using a combination of Plastic Ducting Sealant and Aluminium Duct Sealing Tape

  1. Apply Duct sealant to the male fitting
  2. Push together
  3. Apply Aluminium Duct Sealing Tape over joint

Alternatively, you can use self-sealing fittings that speed up the time taken by up to 70% and can be easily dismantled

Insulation of Ductwork

It is important that any ducting located in a cold area (e.g. loft space) to be insulated. The insulation needs to be the equivalent of 25mm thick and have a thermal conductivity of 0.04W/(m.k) or less.

This ensures that condensation doesn’t form due to the difference in air temperature inside the duct when compared to the air temperature in the cold space.

If you don’t have a loft space there is still a need for insulated ducting on the intake and exhaust legs, as they will be carrying cold air in a warm space. The level of insulation can be achieved by wrapping PVC duct in a layer of 25mm duct wrap that has a silver foil face on a 25mm rockwool

It is also worth noting that foil wrap with air bubbles (bubble wrap) is no longer applicable in building control regulations

Sizes

Rectangular Ducting 90` Horizontal Bend is available in 100x54mm,204x60mm,220x90mm



Documentation

Technical Specification

Rectangular Ducting 90° Horizontal Bend Specificaiton

Rectangular System (mm)

110x54

204x60

220x90

Product Type

Ducting

Ducting

Ducting

Free Area mm²



5,424

11,452

18,545

Length (mm)

 1000MM

1000MM

1000MM

Width (mm)

100

204

 220

Height (mm)

 54

60

 90

Spigot size (mm)

110

204

220

Colour

White

White

White

Material

Polystyrene

Polystyrene

Polystyrene

Weight (Kg)

1.00

1.00

1.00

Packaged Weight (Kg)







Packaged Length (mm)







Packaged Width (mm)







Packaged Height (mm)







Temp Max (°C)

60

60

60

Temp Min (°C)

-15

-15

-15

Pressure Loss (Pa) 15 l/s

 9.8

 1.82

 1.5

Pressure Loss (Pa) 30 l/s

 39.8

 7.46

6.1

Pressure Loss (Pa) 60 l/s

161.9

30.6

25.5

Part Number

HB901100

HB204-90

HB220

EAN- Barcode

5060586911102

 5060586912734

 5060586912741
