Rectangular T Piece

More Views

Interest Free EMI
Rectangular T Piece
Inc Vat £2.53 Excluding VAT £2.11
Rectangular T Piece

* Required Fields

£0.00 including VAT Excluding VAT £0.00
Description

Details

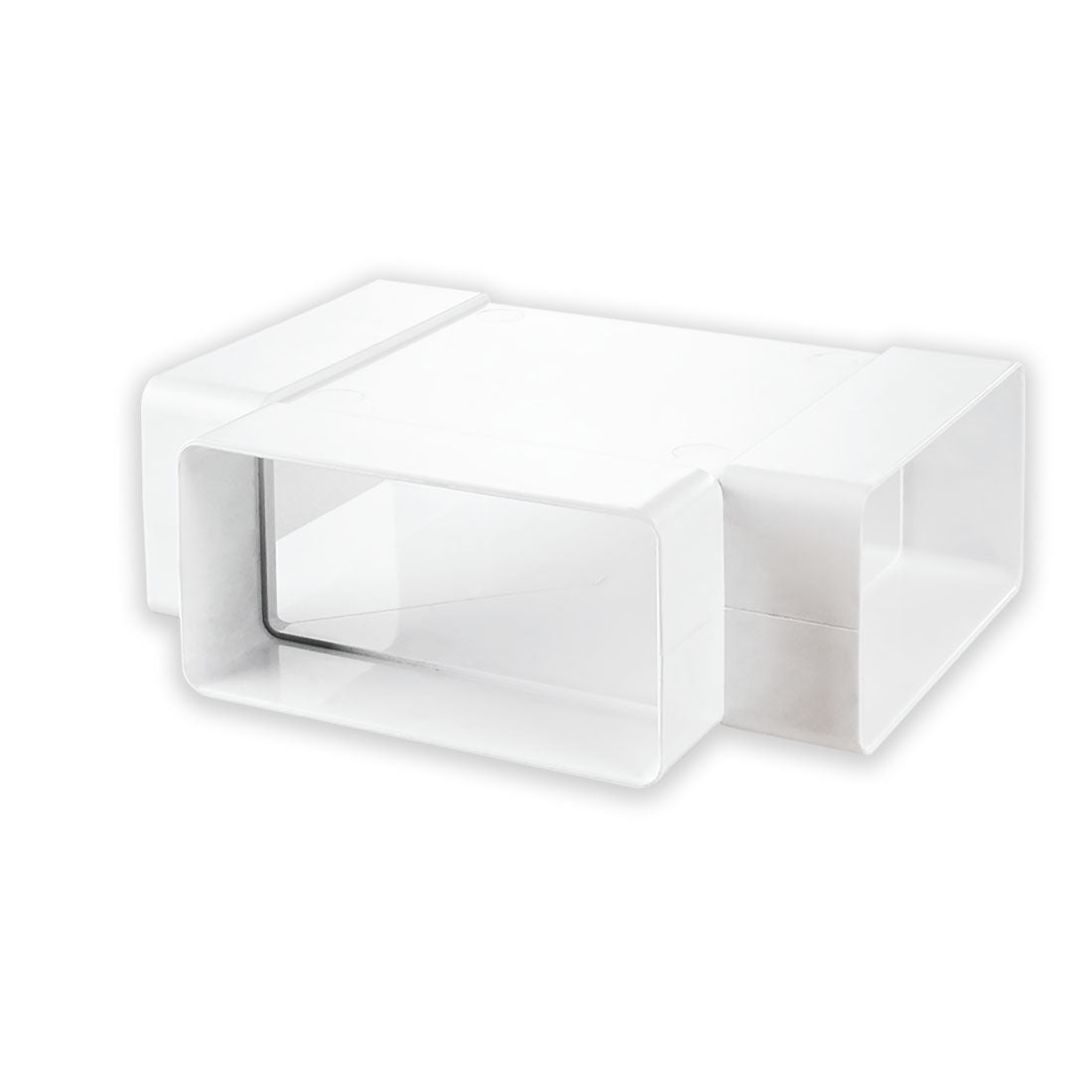

Rectangular T Piece

-110X54 T Piece - T110

-204x60 T Piece - T204

-220x90 T Piece - T220

Top Quality White Plastic T Piece

Three x rectangular connections

Our range of plastic ducting is UK manufactured with top quality materials that will supply a durable product suitable for domestic and commercial systems

It is perfectly suited for ducting your Ventilation system, Kitchen extractor fan, bathroom fan or In-Line Extract Fans

It can be used as a part of a long ductwork run for a variety of purposes including whole house ventilation, passive stack vent, positive input, air conditioning, HVAC, and Heat Recovery Systems

KEY FEATURES:

  • UK Manufactured
  • Male fitting - Will fit inside Round Pipe or Flexible Hose
  • Easy to install and durable, just push-fit duct and fittings together
  • Compatible with most other manufactures
  • Extensive range of fittings, outlets, and grilles available
  • Max / Min Temperature: +60c / -15c
  • DW/154 and meets UL94HB Flammability standard
  • Suitable to use in compliance with Part F Building Regulations
  • Sap Appendix Q Compliant
  • Airflow performance independently tested by BSRIA or BRE
 Compatibility

Compatible with most manufactures including



110x54mm

204x60mm

220x90mm

Verplas

VKC228

VKC5630

VKC5730

Vent-Axia

436614

436551

449365

Manrose

40080

55582

       -

Domus

DD080

582

982

Nuaire

PVC080WH

       -

       -



Performance

Solid Rigid Rectungular ducting system is suitable for use in all buildings to provide superior airflow performance vs. comparative size rectangular or flexible pvc or Aluminium duct. Suitable to use in compliance with Part F Building Regulations.

Installation

To provide the best performance in airtightness and durability we recommend You provide greater mechanical strength to a joint by using a combination of Plastic Ducting Sealant and Aluminium Duct Sealing Tape

  1. Apply Duct sealant to the male fitting
  2. Push together
  3. Apply Aluminium Duct Sealing Tape over joint

Alternatively, you can use self-sealing fittings that speed up the time taken by up to 70% and can be easily dismantled

Insulation of Ductwork

It is important that any ducting located in a cold area (e.g. loft space) to be insulated. The insulation needs to be the equivalent of 25mm thick and have a thermal conductivity of 0.04W/(m.k) or less.

This ensures that condensation doesn’t form due to the difference in air temperature inside the duct when compared to the air temperature in the cold space.

If you don’t have a loft space there is still a need for insulated ducting on the intake and exhaust legs, as they will be carrying cold air in a warm space. The level of insulation can be achieved by wrapping PVC duct in a layer of 25mm duct wrap that has a silver foil face on a 25mm rockwool

It is also worth noting that foil wrap with air bubbles (bubble wrap) is no longer applicable in building control regulations

Sizes

Plastic Ducting Rectanulgar T Piece is available in 110x54mm, 204x60mm, 220x90mm if you require larger ductwork we recommend you use Metal Spiral ducting and fittings due to superior strength

Delivery

All orders over £250 have free delivery to any mainland location in the Uk and ROI

Small parcels are £10 to any mainland location in the UK and ROI

Benefits of working with BPC Ventilation

  • Authorised distributors
  • In-House design service
  • In-House Technical support
  • Specialists in easy to install DIY systems
  • 1000s of products in stock in our own warehouse
  • Large showroom with working units on display
  • Installer network throughout the UK and Ireland
  • All systems comply to all the latest building control regulations
  • 0% Finance available
Technical Specification

Technical Specification

Rectangular T Piece Technical specification

Round System (mm)

110 x 54

204 x 60

220 x90

Product Type

T Piece

T Piece

T Piece

Free Area (mm²)



5,424

11,452

168,545

Length (mm)

 154

154

 295

Width (mm)

110

114

260

Height (mm)

59

59

 95

Spigot size (mm)







Colour

White

White

White

Material

Polystyrene

Polystyrene

Polystyrene

Weight (Kg)







Packaged Weight (Kg)







Packaged Length (mm)







Packaged Width (mm)







Packaged Height (mm)







Temp Max (°C)

60

60

60

Temp Min (°C)

-15

-15

-15

Pressure Loss (Pa) 15 l/s

n/a

n/a

n/a

Pressure Loss (Pa) 30 l/s

n/a

n/a

n/a

Pressure Loss (Pa) 60 l/s

n/a

n/a

n/a

Part Number

 T110

 T204

 T220

EAN- Barcode

5060586911096

 5060586912710

5060586912727
